05Material family
Mild & Galvanized Steel
Structural mild steel and galvanized steel: pipes, hollow sections, channels, angles, bars, sheets, coils and plates in standard structural grades.
01Specification
Product forms, sizes and grades
Applications
- Structural fabrication
- Construction & framing
- Machined components
- Trailer & truck bodies
- 01

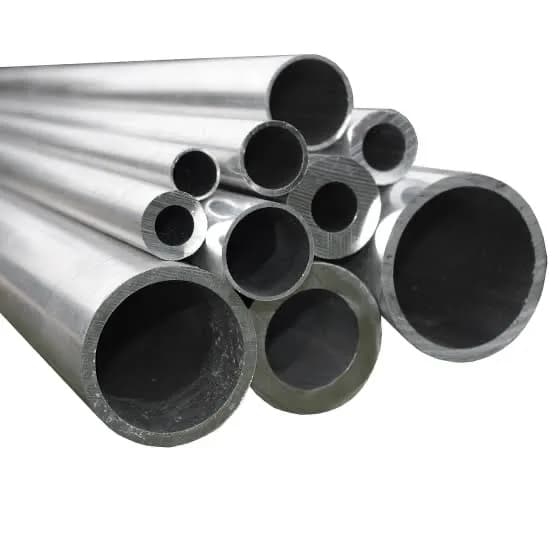

Black & galvanized steel pipes
Sizes½" up to 12", SCH 40 & SCH 80
GradesASTM A53 GR A/B
- 02
Square hollow sections
Sizes12 × 12 up to 400 × 400 mm, various THK
GradesS235JR, S275JR, S355JR
- 03
Rectangular hollow sections
Sizes30 × 15 up to 400 × 200 mm, various THK
GradesS235JR, S275JR, S355JR
- 04
C channels
Sizes50 × 25 up to 150 × 75 mm, various THK
GradesS275JR / A36, S355JR
- 05
Equal angles
Sizes25 × 25 up to 200 × 200 mm, various THK
GradesS275JR / A36, S355JR
- 06
Round & square bars
Sizes6 mm up to 100 mm
GradesS275JR / A36, S355JR
- 07
Flat bars
Sizes20 mm up to 200 mm, various THK
GradesS275JR / A36, S355JR
- 08
Hot rolled sheets / coils
SizesTHK 1 – 20 mm, widths 1219 – 2000 mm
GradesASTM A36 / S275JR / SS400
- 09
Galvanized sheets / coils
SizesTHK 0.28 – 4 mm, width 1219 mm
GradesZ90 – Z275, regular & zero spangle
- 10
Cold rolled sheets / coils
SizesTHK 0.4 – 2 mm, width 1219 mm
GradesJIS G3141 / SPCC
- 11

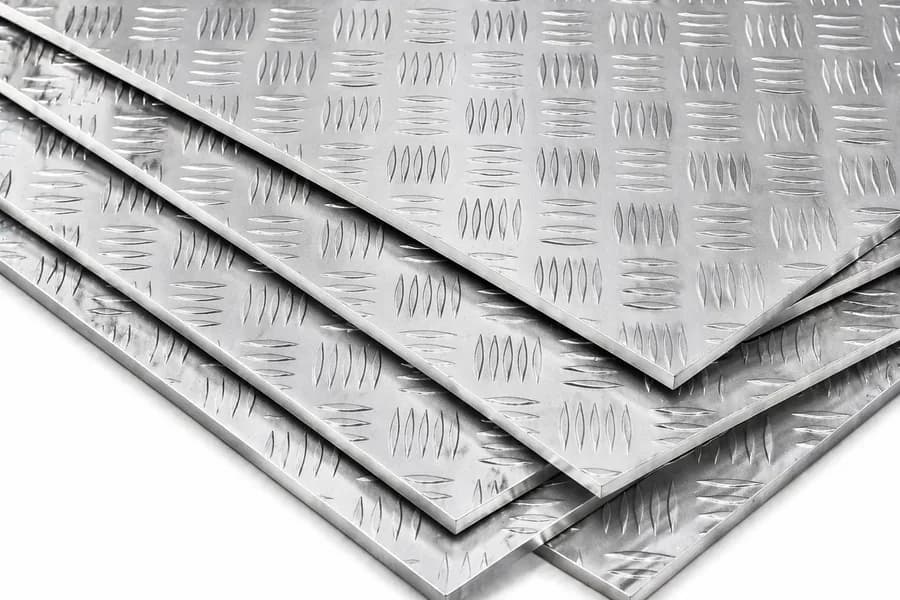

Checkered plates
SizesTHK 1.8 – 10 mm; 1219 × 2438 & 1500 × 6000 mm
GradesASTM A36 / S275JR / SS400
- 12
Hot rolled plates
SizesTHK 4 – 60 mm; 2 × 6 m up to 3.05 × 12 m
GradesASTM/ASME 60/65/70; ABS GR A/B/X; AH36, EH36; S355J2, S355K2; API 2H50; A36, S275JR
Special sizes and grades available on request.
Galvanizing
Electroplating and hot-dip galvanizing for corrosion protection.
Cut to size
Plates, sections and bars cut to your required size in-house.
Ex-stock supply
Ready stock in Dubai for immediate collection or delivery.
Need mild & galvanized steel in a specific size?
Send the grade, dimensions and quantity. Our team will confirm availability and come back with a quote.
